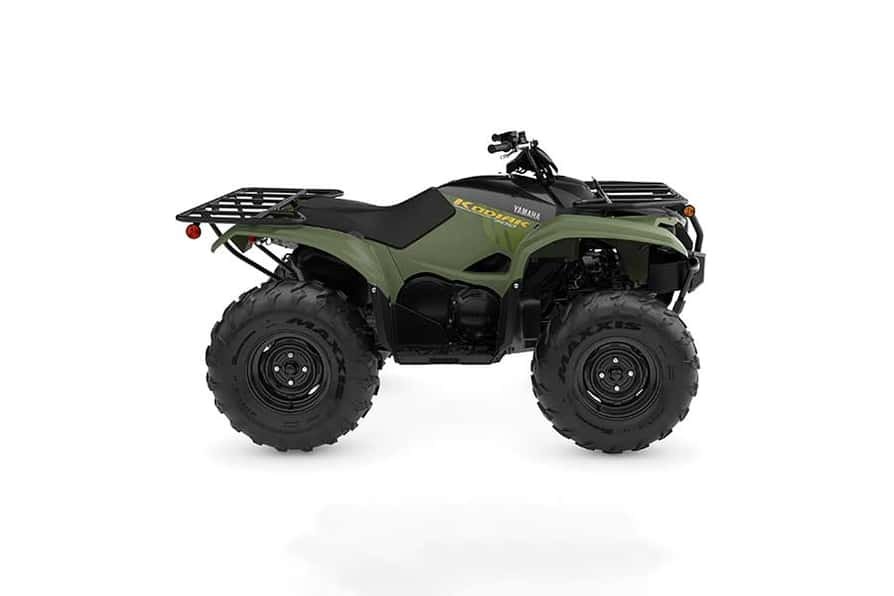

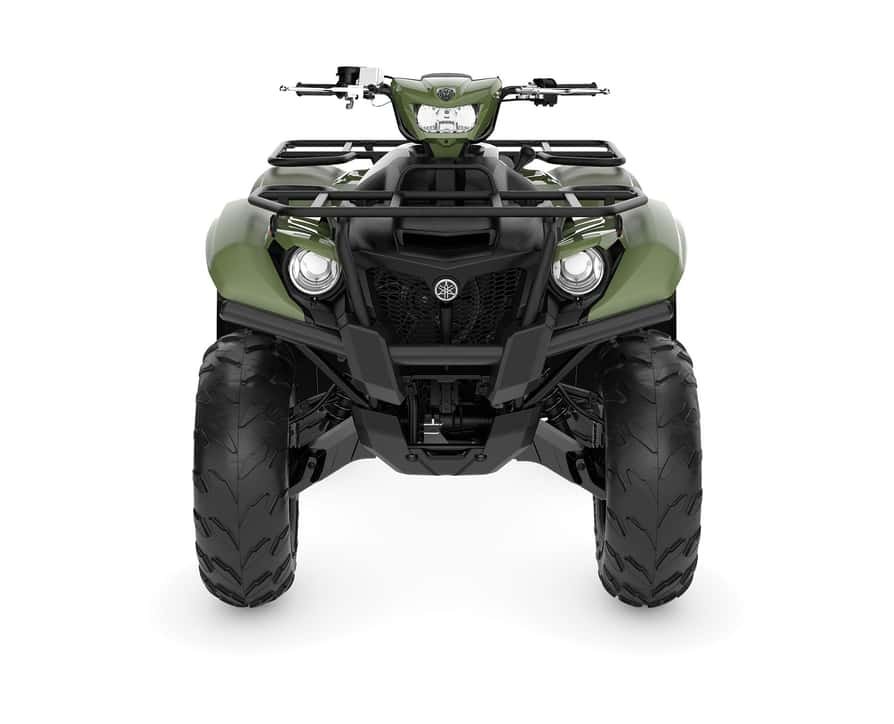

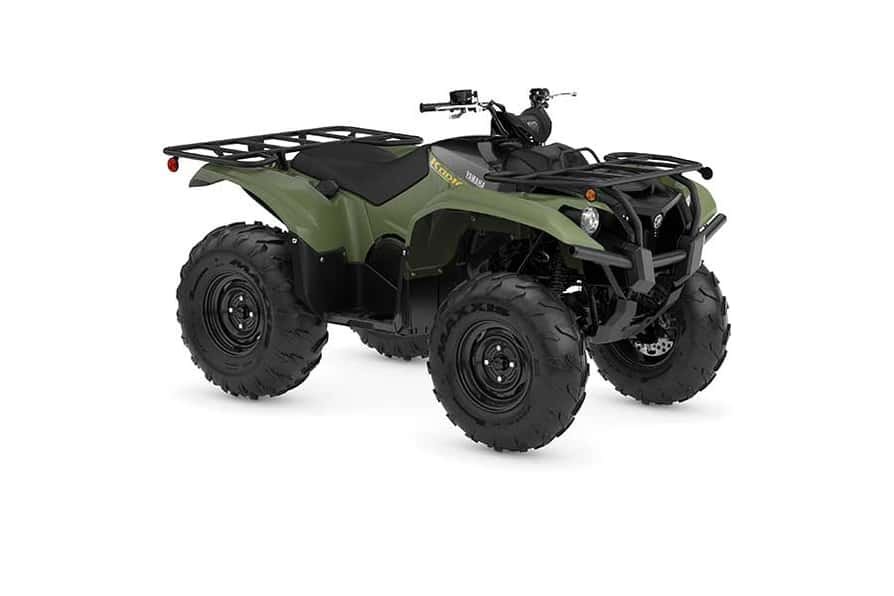

2025 Yamaha Kodiak 700

  • 2025 Yamaha Kodiak 700
AVAILABLE TO ORDER

CURRENT PROMOTIONS

Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

PROVEN PERFORMANCE AND VALUE. Offering Proven Off‑Road capability and comfort during all-day rides, regardless if they are filled with chores or trail adventures.

Specifications
Model
KODIAK
Category Name
ATVs
Year
2025
Sale Type
New
Manufacturer
Yamaha
Color
Tactical Green
engine
ENGINE
Liquid-cooled, SOHC 4-stroke
Ignition
TCI
Starting
Electric
FINAL DRIVE
Lever-operated 2WD/4WD; shaft
LUBRICATION
Wet sump
DISPLACEMENT
686 cc
TRANSMISSION
Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
FUEL DELIVERY
Yamaha Fuel Injection (YFI), 44 mm
BORE AND STROKE
102 mm x 84 mm
COMPRESSION RATIO
10 : 1
chassis
TIRES (REAR)
Maxxis MU20, AT25 x 10-12
BRAKES (REAR)
Multi-Disc wet brake
TIRES (FRONT)
Maxxis MU19, AT25 x 8-12
BRAKES (FRONT)
Dual hydraulic disc
SUSPENSION (REAR)
Adjustable independent double wishbone with anti-sway bar / 232 mm (9.1") of wheel travel
SUSPENSION (FRONT)
Independent double wishbone / 180 mm (7.1") of wheel travel
highlights

2025 Yamaha Kodiak 700CAPABILITY

Maximizing available traction, the Kodiak 700 features 25-inch Maxxis® tires that provide precise steering feel and feedback.

2025 Yamaha Kodiak 700COMFORT

An optimized 4.76-gallon fuel tank is located under the seat for excellent mass centralization and improved handling.

2025 Yamaha Kodiak 700CONFIDENCE

Rugged, large-diameter steel cargo racks with durable wrinkle paint finish can pack a total of 308 pounds combined (110 lb front, 198 lb rear). An on-board storage compartment keeps things dry too.

2025 Yamaha Kodiak 700CONFIDENCE

The Kodiak 700 transmission uses its own cooling intake to maintain proper temperatures, an oversized belt to handle the torque of the large motor and Yamaha’s unique sprag clutch to maintain constant belt tension. The end result is a drivetrain built for years of trouble-free service that leaves the competition in the dust, and is backed by the industry's only 10-Year V-Belt Limited Warranty.



key features
  • Big Bore Engine Built to Tackle the Real World
  • High-Performance Ultramatic® Transmission
  • Convenient, handlebar mounted 2wd - 4wd drive selector lever.
  • Stainless Steel Exhaust
  • Drive System Air Intake
  • High-Capacity Radiator



critical data
WIDTH
1180 mm (46.5")
HEIGHT
1240 mm (48.8")
LENGTH
2070 mm (81.5")
Warranty
One year (unlimited mileage) / 10 Year Belt Warranty
WHEELBASE
1250 mm (49.2")
WET WEIGHT
299 kg (659 lb)
SEAT HEIGHT
860 mm (33.9")
Turn Radius
3200 mm (126")
Tread (Rear)
915 mm (36")
FUEL CAPACITY
18 L
Tread (Front)
940 mm (37")
Towing Capacity
600 kg (1,322 lb)
Rack Capacity (Rear)
90 kg (198 lb)
Rack Capacity (Front)
50 kg (110 lb)
Maximum Ground Clearance
274 mm (10.8")
features & benefits

ENGINE

  • Big Bore Engine Built to Tackle the Real World
    • The Kodiak 700 combines big bore power without losing an ounce of comfort
    • The 700-class engine with improved midrange performance and optimized torque right where you use it most
    • Gearing designed for low rpm cruising and smooth running motor mounts to create excitement on the trails while still being quiet and potent for the job site
  • High-Performance Ultramatic® Transmission
    • Features gated shifter, dual-range (Hi/Lo) drive plus reverse gear
    • Most advanced and durable CVT system available
    • Automatic centrifugal clutch maintains constant belt tension for reduced belt wear
    • Sprag clutch delivers natural all-wheel engine braking for control and confidence
  • Convenient, handlebar mounted 2wd - 4wd drive selector lever.
    • drive system features 2 modes: 2wd & 4wd limited slip
  • Stainless Steel Exhaust
    • Maintains clean-running performance
    • Features screen-type spark arrestor for great power with minimum noise output
  • Drive System Air Intake
    • Specially designed, high-mounted drive system air intake
    • Helps reduce drive system temperatures and assists in keeping water and debris from entering the drive case
    • Increases power and torque while providing additional room for on-board storage
  • High-Capacity Radiator
    • Efficient high-capacity radiator with fan assist that delivers plenty of air flow for maximum cooling efficiency
    • Positioned high in the frame for optimal protection

Chassis

  • Trail-Ready Chassis
    • With plenty of ground clearance and adjustable suspension, the Kodiak tackles rough terrain with ease.
    • Wide-arc A-arms and full-body skid plates ensure the Kodiak is able to handle anything the farm or trail can throw at it
  • High-Performance Tires
    • To maximize available traction, the Kodiak features 25-inch Maxxis® tires
    • Provide precise steering feel and feedback
  • Aggressive and Durable Styling
    • Rugged composite front bumper resists scratching and rust
    • Injection-molded fenders and CV joint guards protect again rock and debris
  • Compact Ergonomics
    • A plush seat improves rider comfort for extended days exploring
    • Plenty of room for the rider to move during aggressive riding
    • Despite full size performance, Kodiak features a more compact body design similar to mid-sized ATV for overall ease in handling
  • Extensive Cargo Capacity
    • Rugged, large-diameter steel cargo racks with durable wrinkle paint finish
    • 308 pounds of total carrying capacity
    • On-board storage compartment keeps things dry
  • Work-Ready Tow Capacity
    • Tow up to 600 kg (1322 lb)
  • Generous Ground Clearance
    • Offers impressive 10.8 inches of maximum ground clearance
    • Full-length composite skid plate for underbelly protection

Design

  • Ready for Accessories
    • Engineered in concert with a range of accessories for perfect fit and function
    • Standard 12V power point to keep devices charged.
